Hoops

Hoops in all sizes

0200

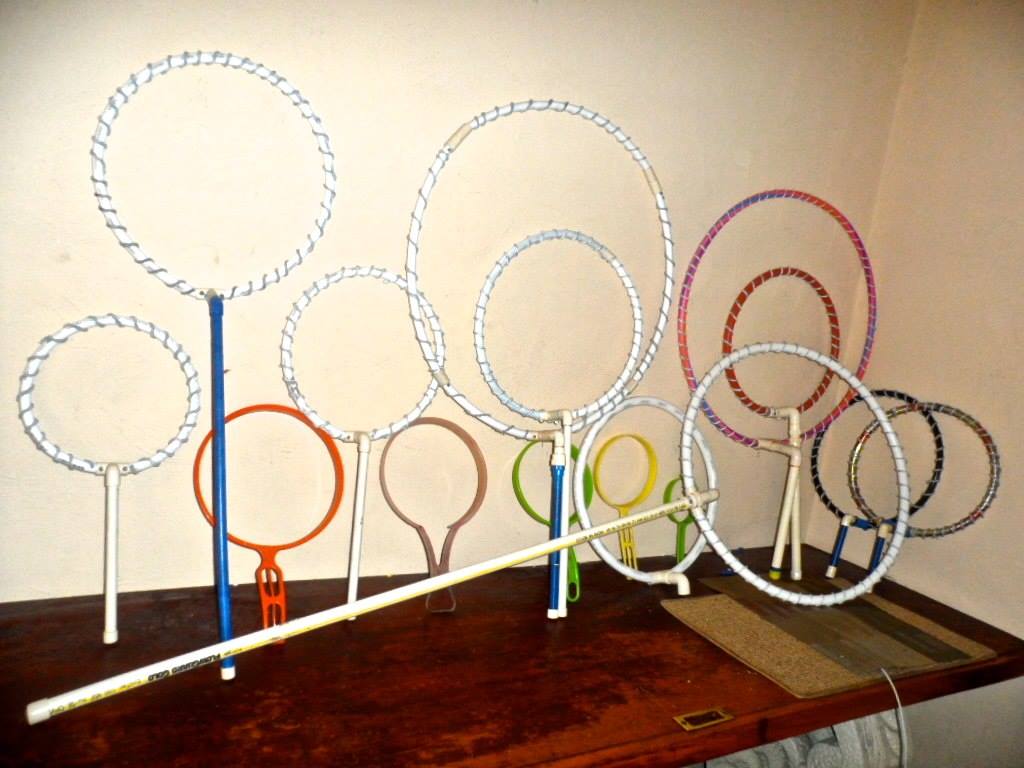

You can use this procedure to create hoops of any size. I chose to make a sm, med. and large hoop to fit my dip trays plus larger sizes for KIB with the following dimensions: Small--29 1/2" overall length for a 10 1/4" outside diameter. Medium--36 1/4" length 12 1/2" diam. Large--46" length 15 1/4" diam. Xtra large (KIB)--76" length 25" diam.


00

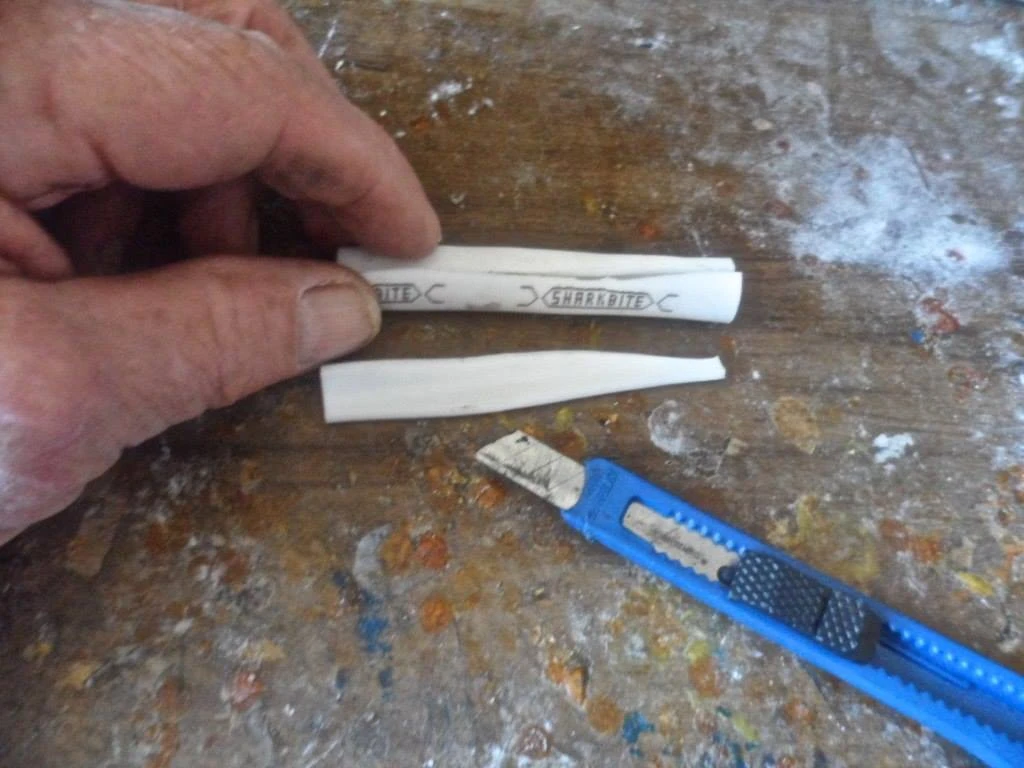

Cut off a 3-4" piece of 1/2" PEX tubing and slice out a section longways to make the diameter smaller.

0400

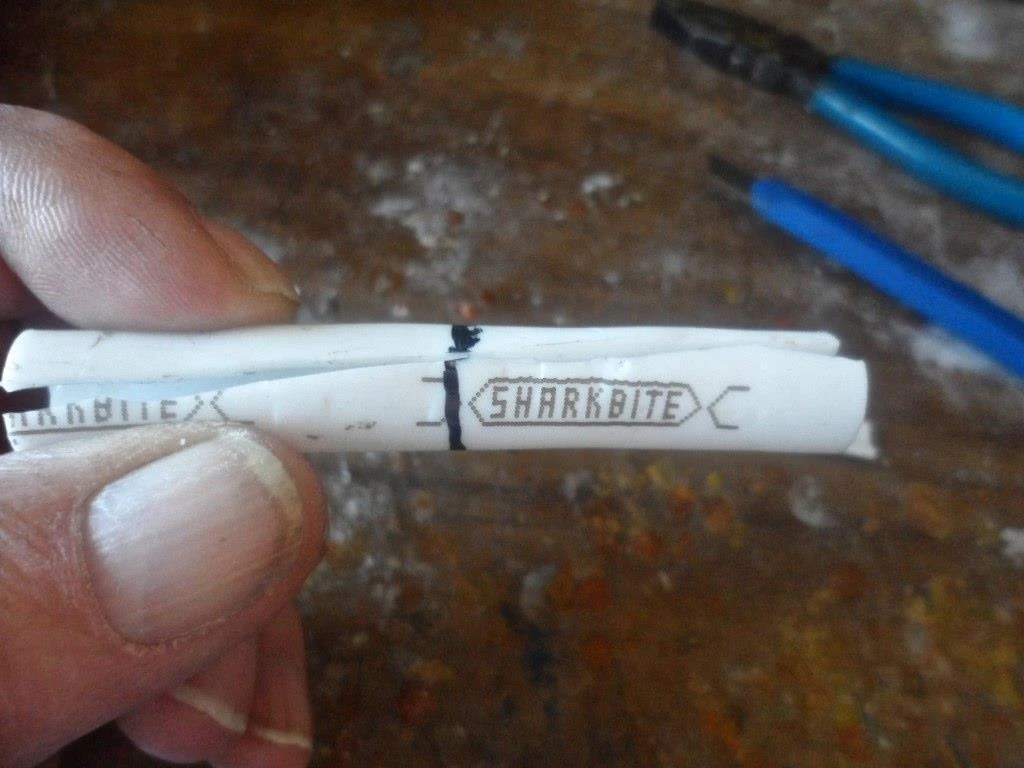

Mark the middle of this piece...

0600

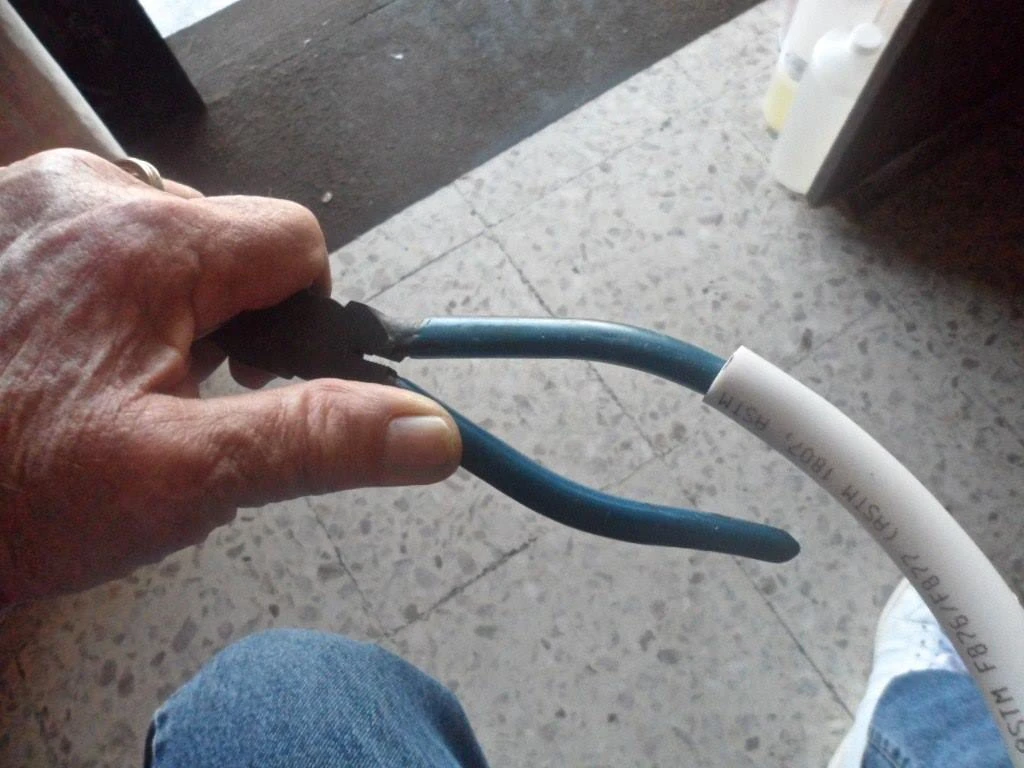

Flex your long section of tubing into its approx. shape (round). the very ends need extra curvature to simplify the assembly (as shown).

0500

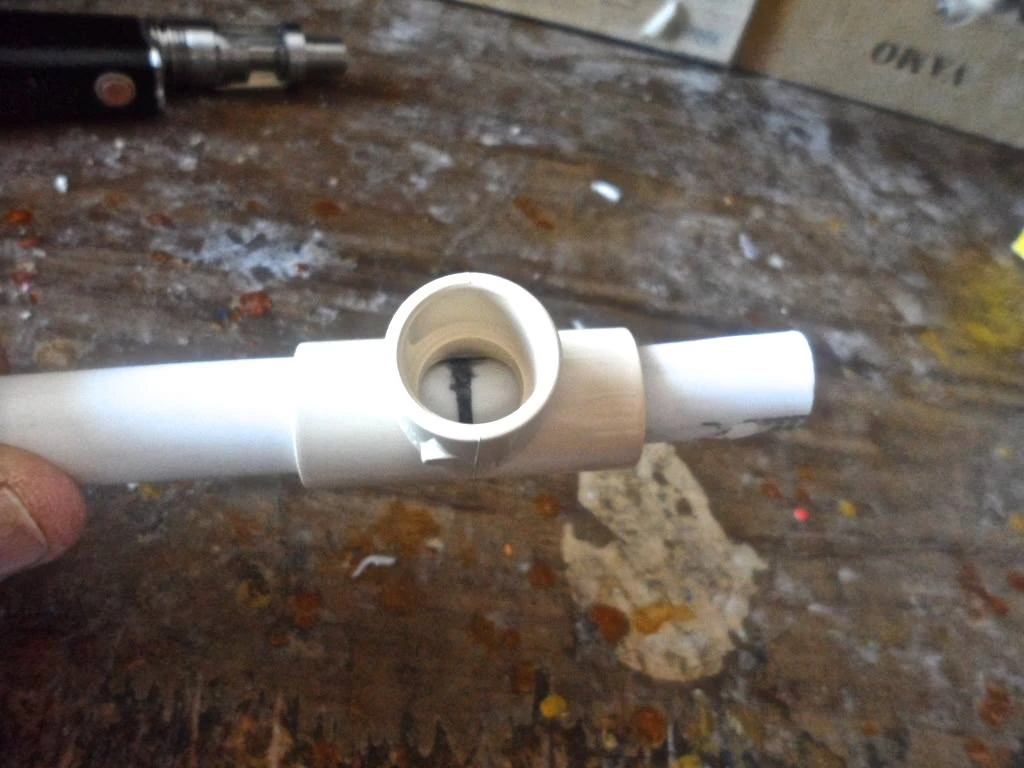

Center your mark


0700

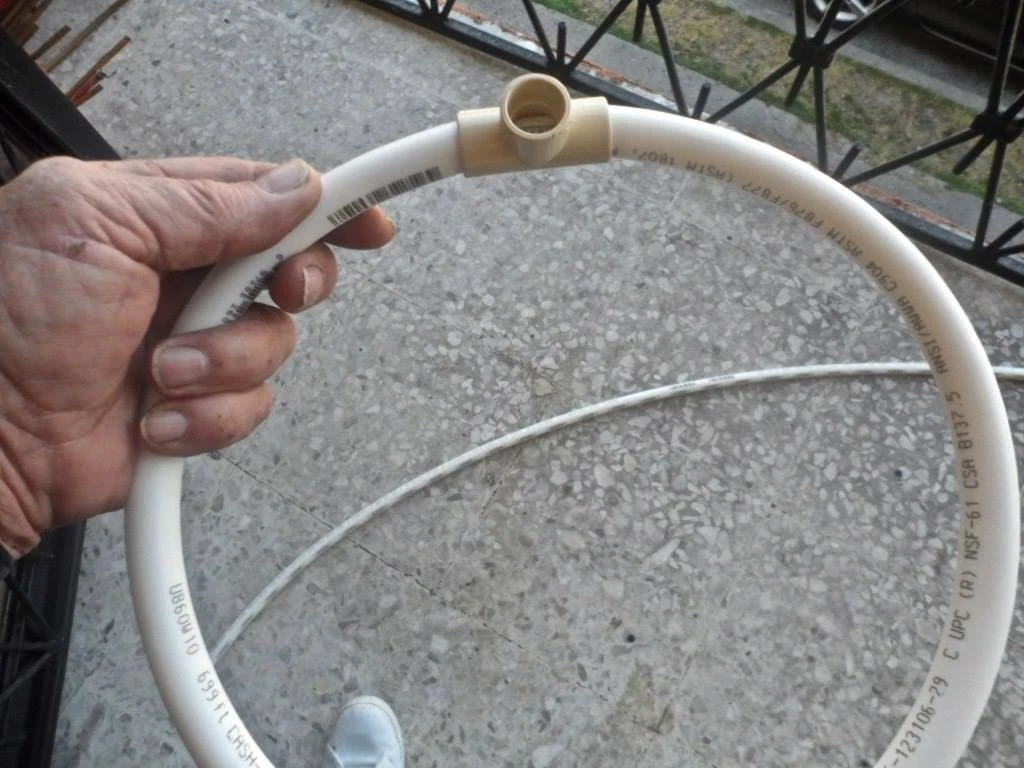

Manualy flex the hoop into more of a round shape

0899

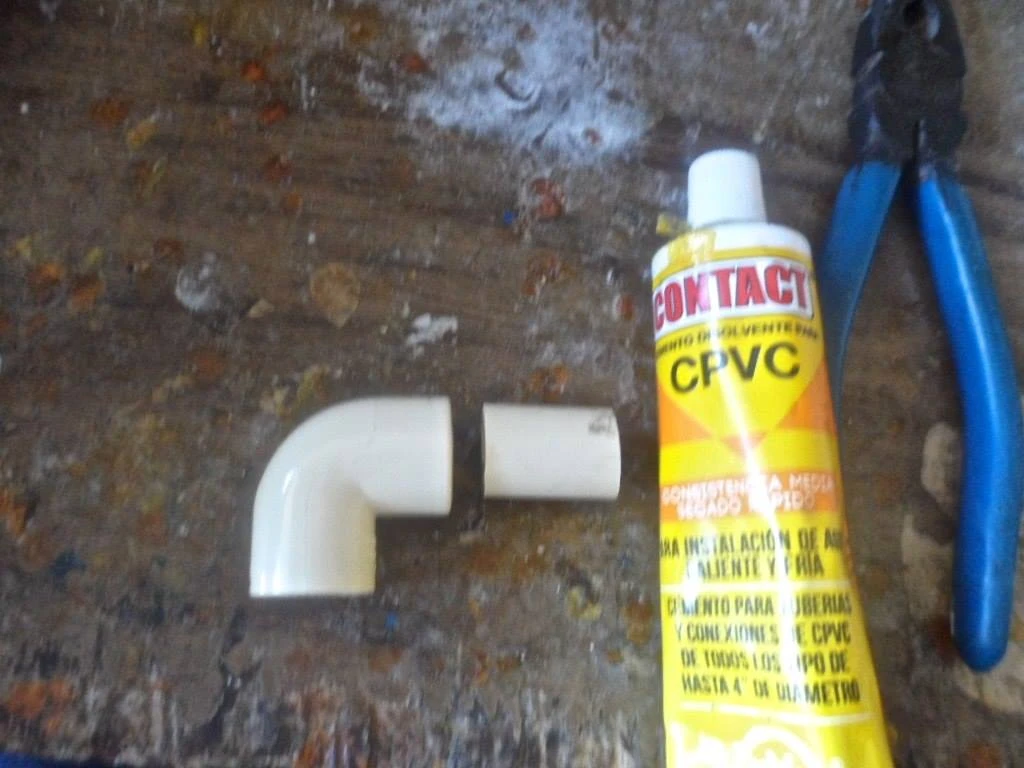

Whenever you are using CPVC fittings you need adhesive that is specially formulated for CPVC


1000

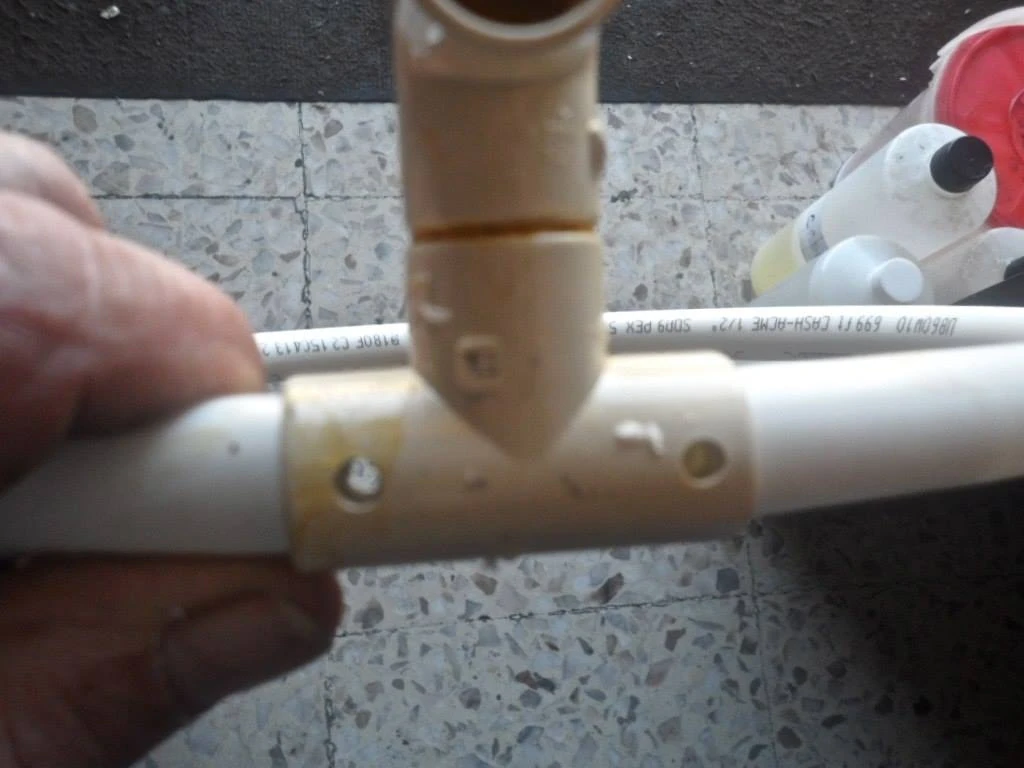

To attach the "T" fitting permanently to the tubing I drill 5/32" holes all the way thru as shown.....

0900

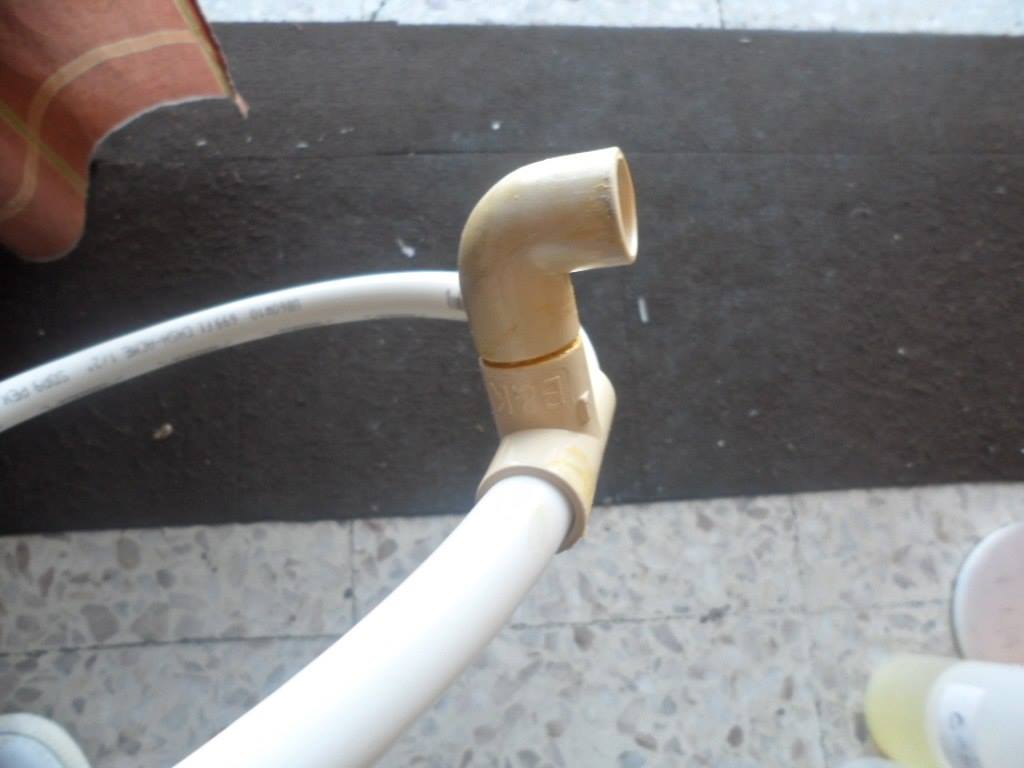

At this point you can add a 1/2" CPVC tube for a handle. There is another option for a detachable handle shown latter in this photo essay


112345

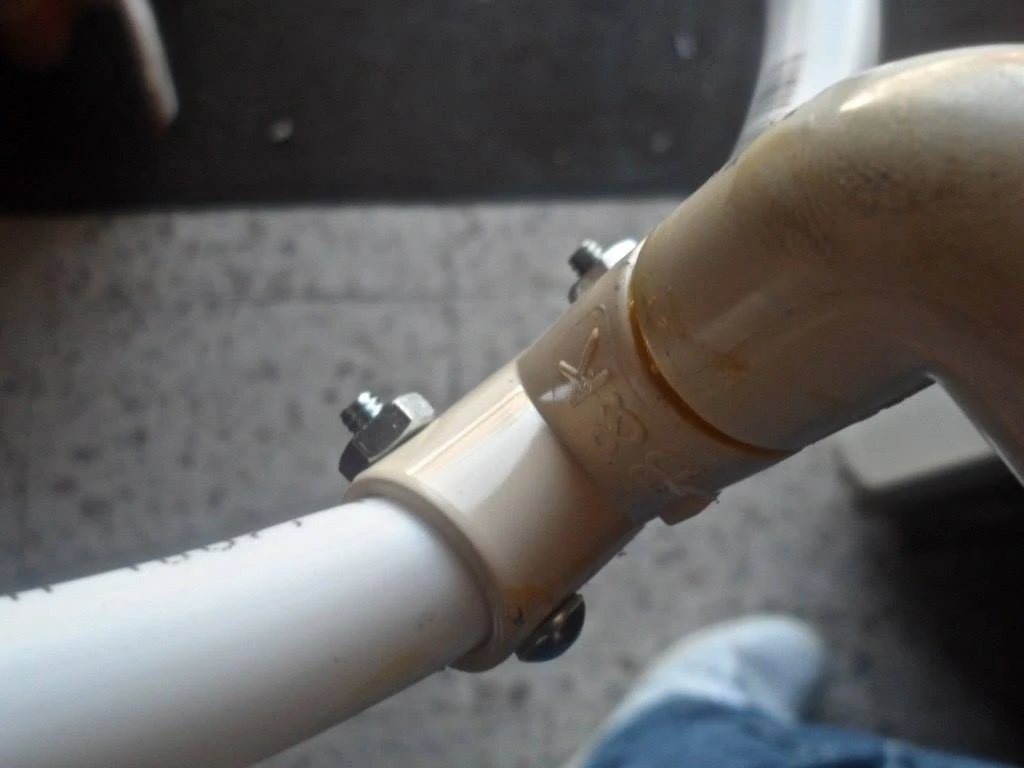

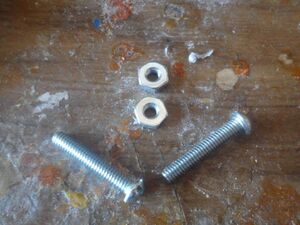

Appropriate length and diamter machine type nuts and bolts do very well

1212

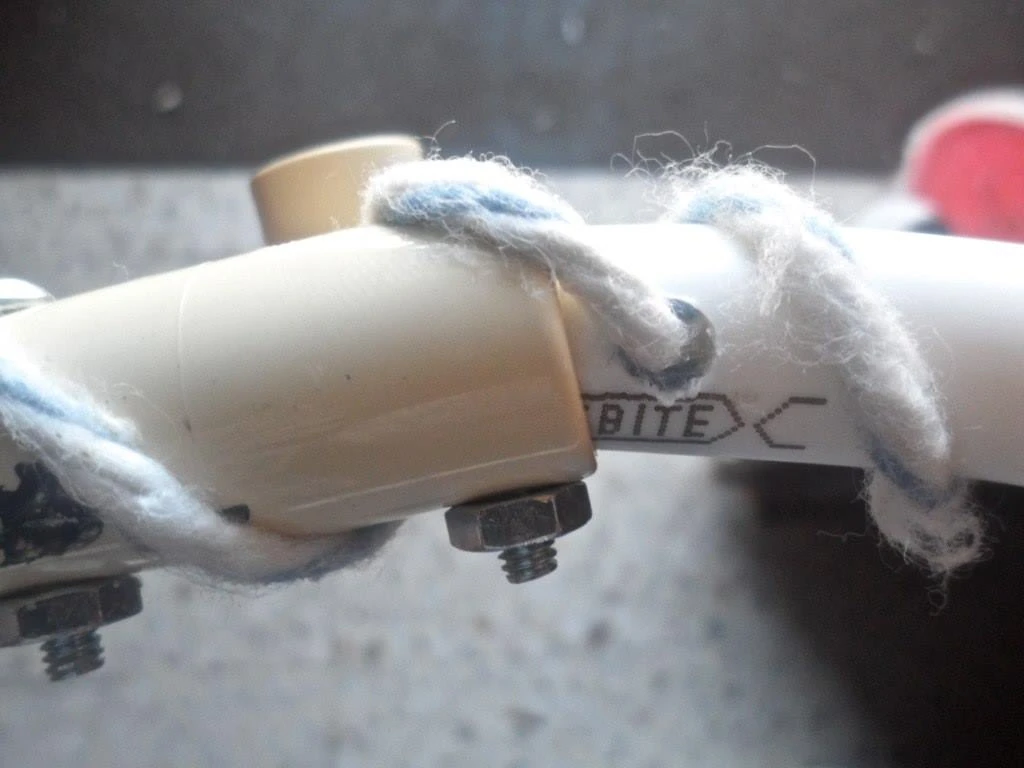

I put the end with the excess length facing inward so it wil not snag on the dipping tray.


1313

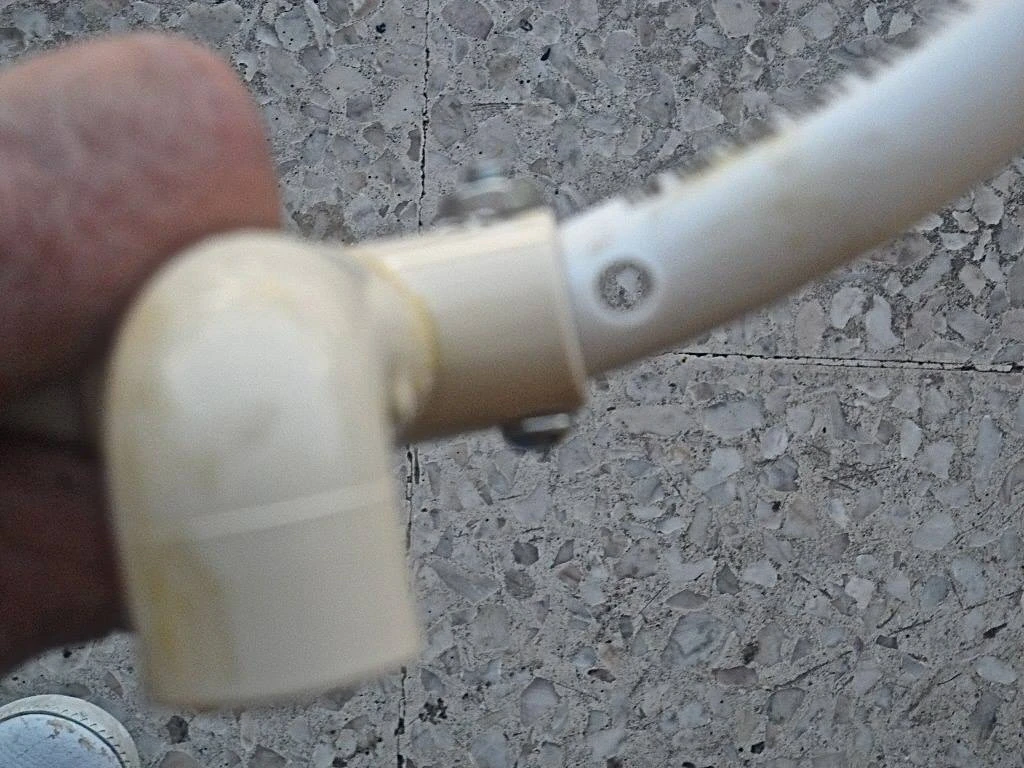

To begin wrapping the hoop with cord I drill one 7/32" hole all the way thru the tube near the "T"

1414

Choose the cord that you will use to wrap your hoop with. Shown here is Rubbermaid rayon mop head yarn. Tie one end of the cord/yarn into a knot and begin stuffing the knotted end into the hole you drilled.


1515

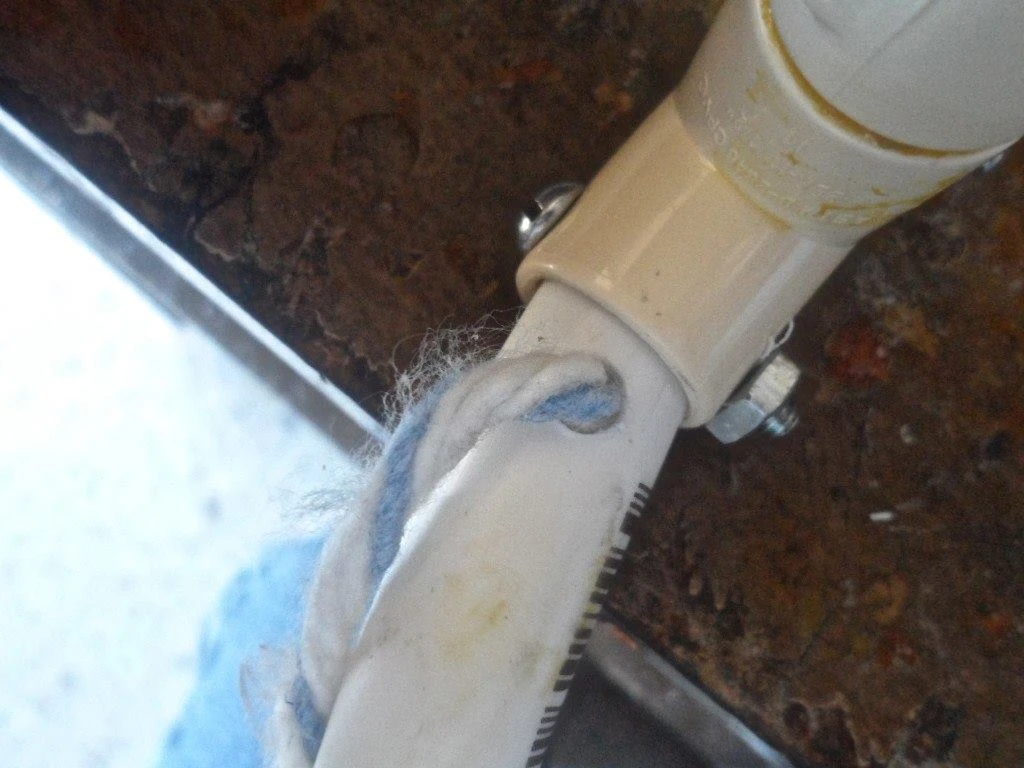

The knot will fit nicely into the hole with some work and plug the hole

1616

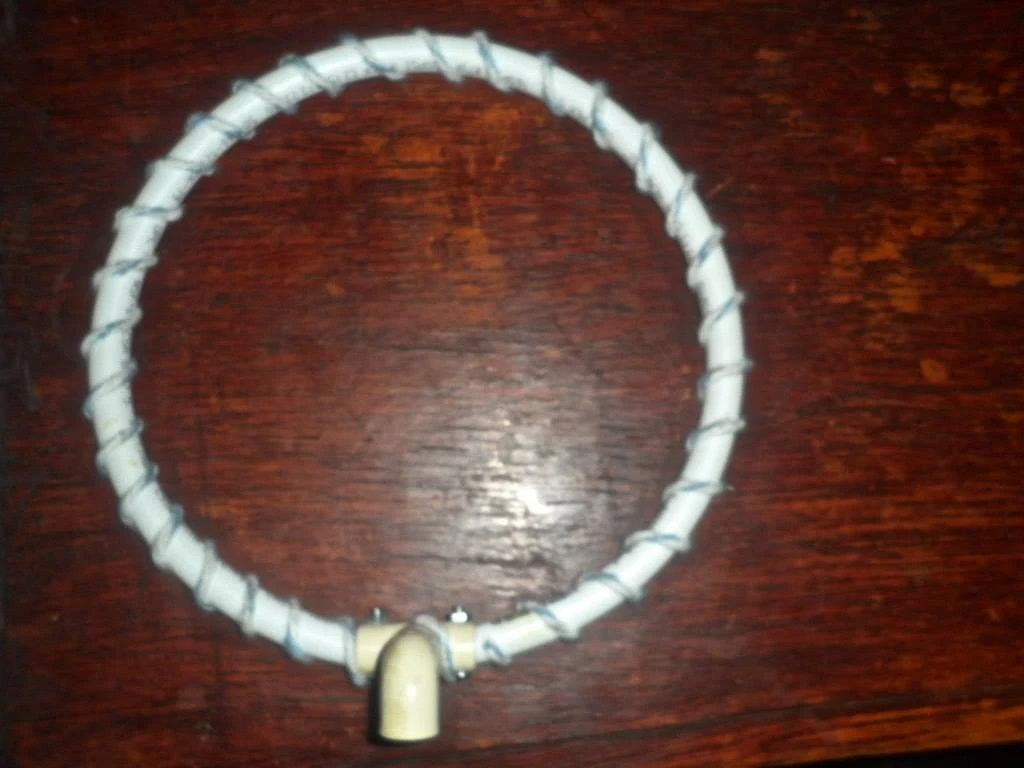

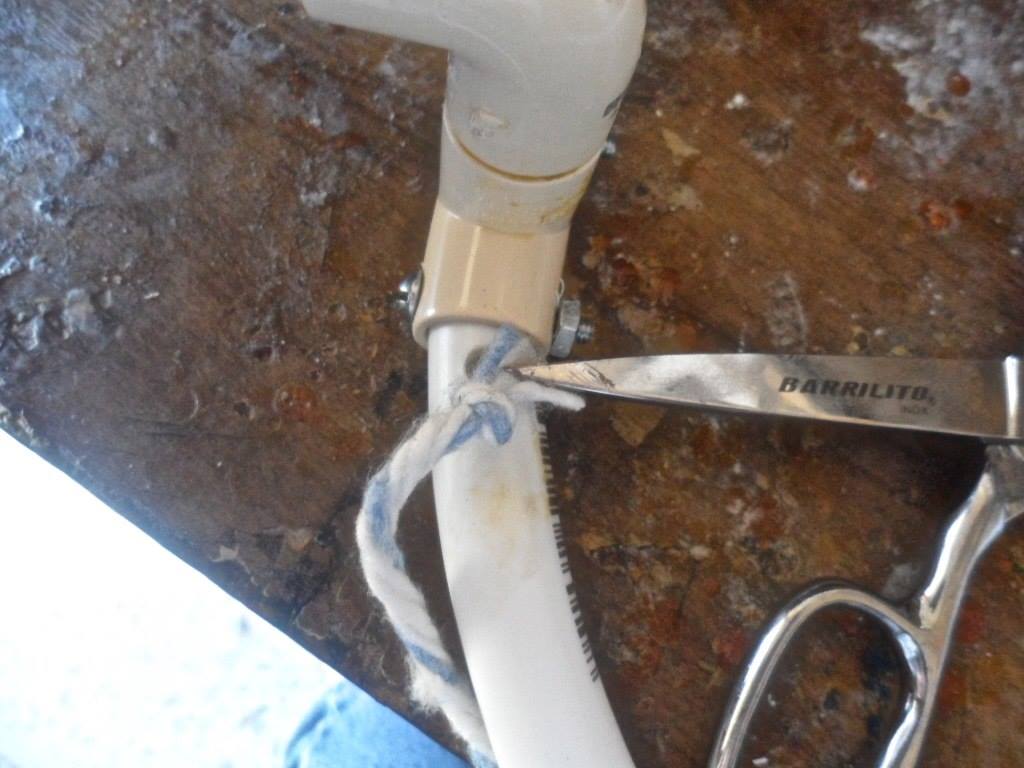

When you are finished wrapping the hoop repeat your beginning procedure by tying a knot at the end of the cord and stuffing it into the other side of the tubing in the same hole.


1717

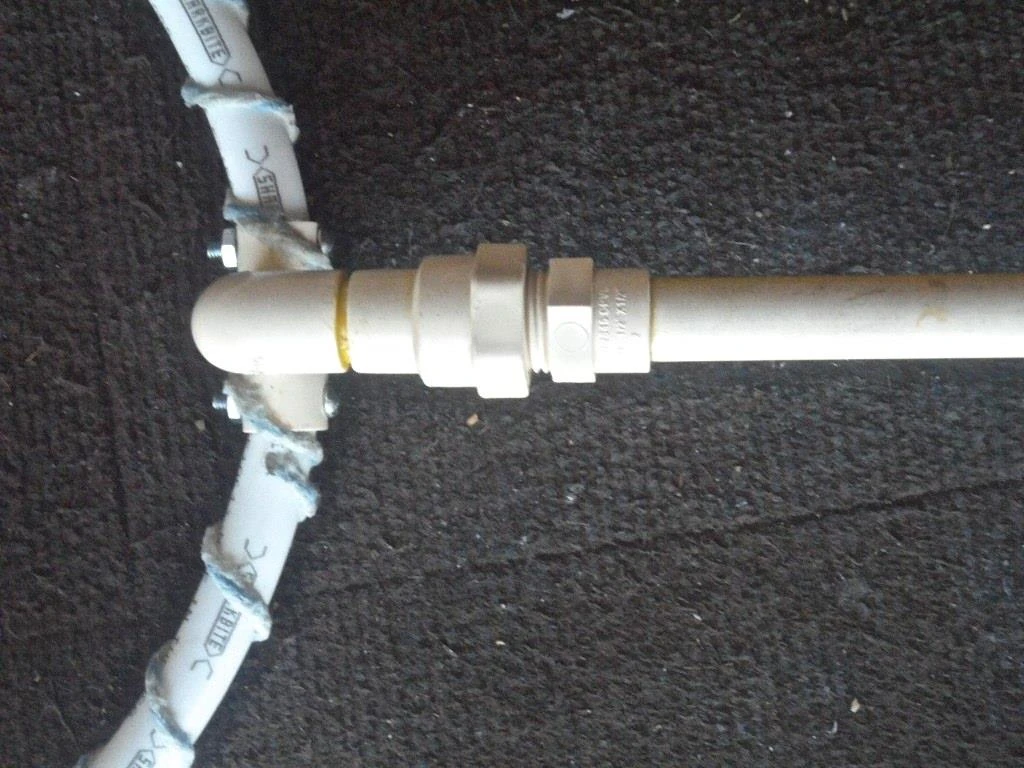

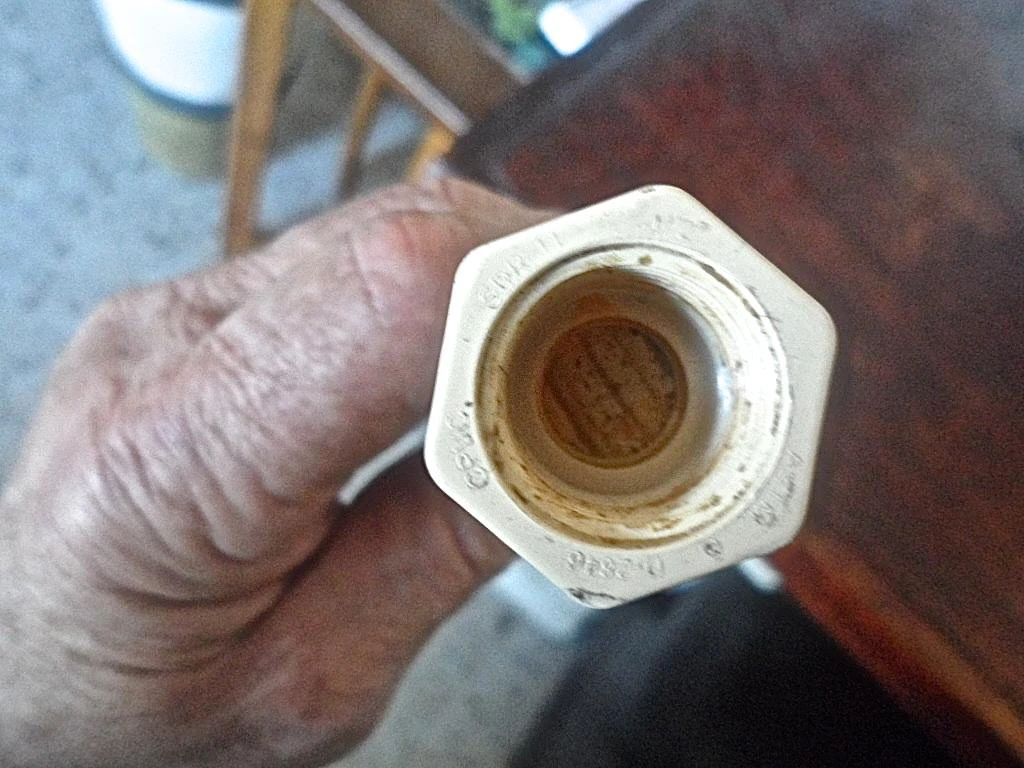

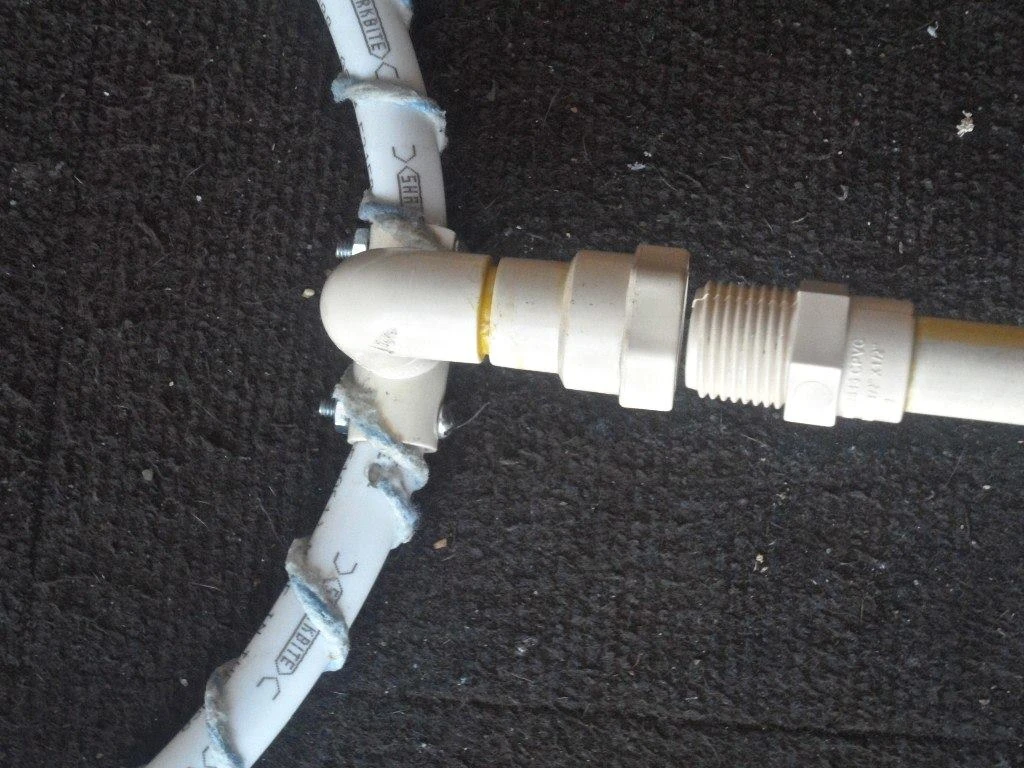

At better hardware supply outlets you can find threaded attachments that will allow you to remove the handle for travel as an option to a permanently attached handle as mentioned earlier.

1818

Very convenient and simple


2020

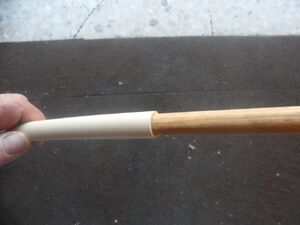

Longer handles will tend to flex. If this is something you want to eliminate you can simple purchase a wooden doweling from your hardware supplier and insert it into the PEX tubing for added strength and support. You may have to sand down the doweling a bit to make it fit.

21pg

I add the doweling the entire length of the tube I am supporting. I also add a bit of carpenter's white glue along the length to keep it from rattling if it is a bit loose inside.

19g19

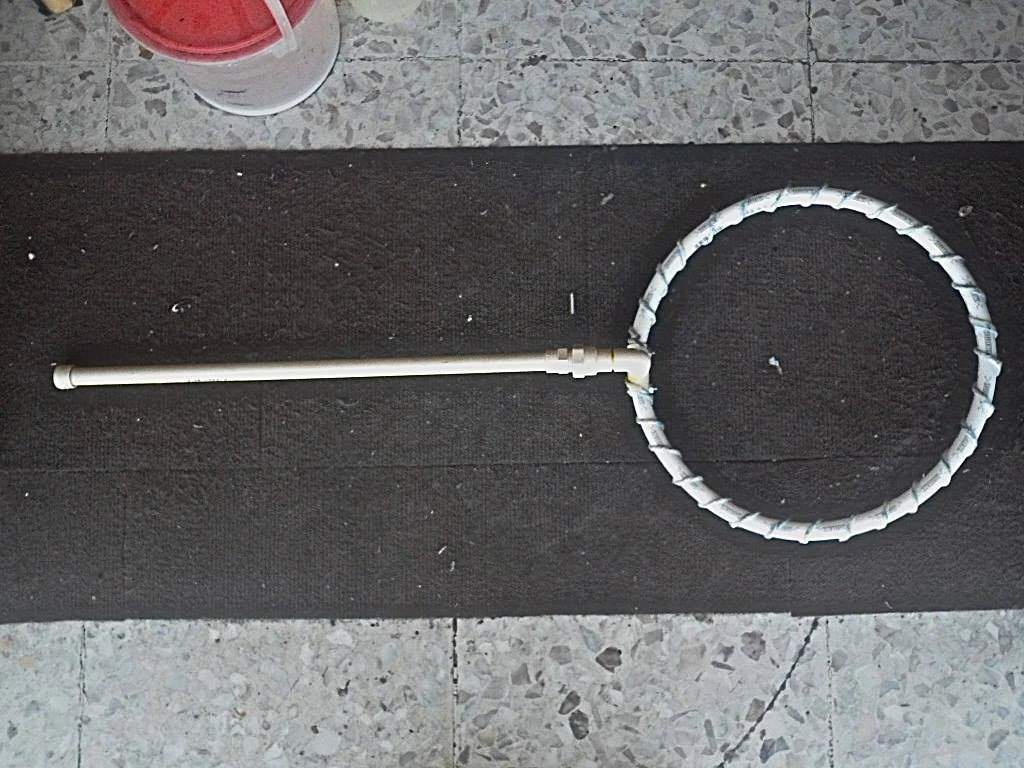

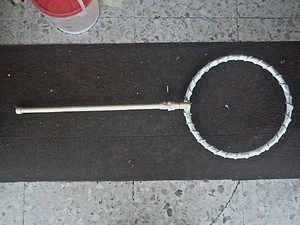

A smaller hoop redy to go.
